PLUG-INS FOR VECTORWORKS
A collection of fully-editable, hybrid plug-ins to increase the quality of 2D drawings and 3D renders.

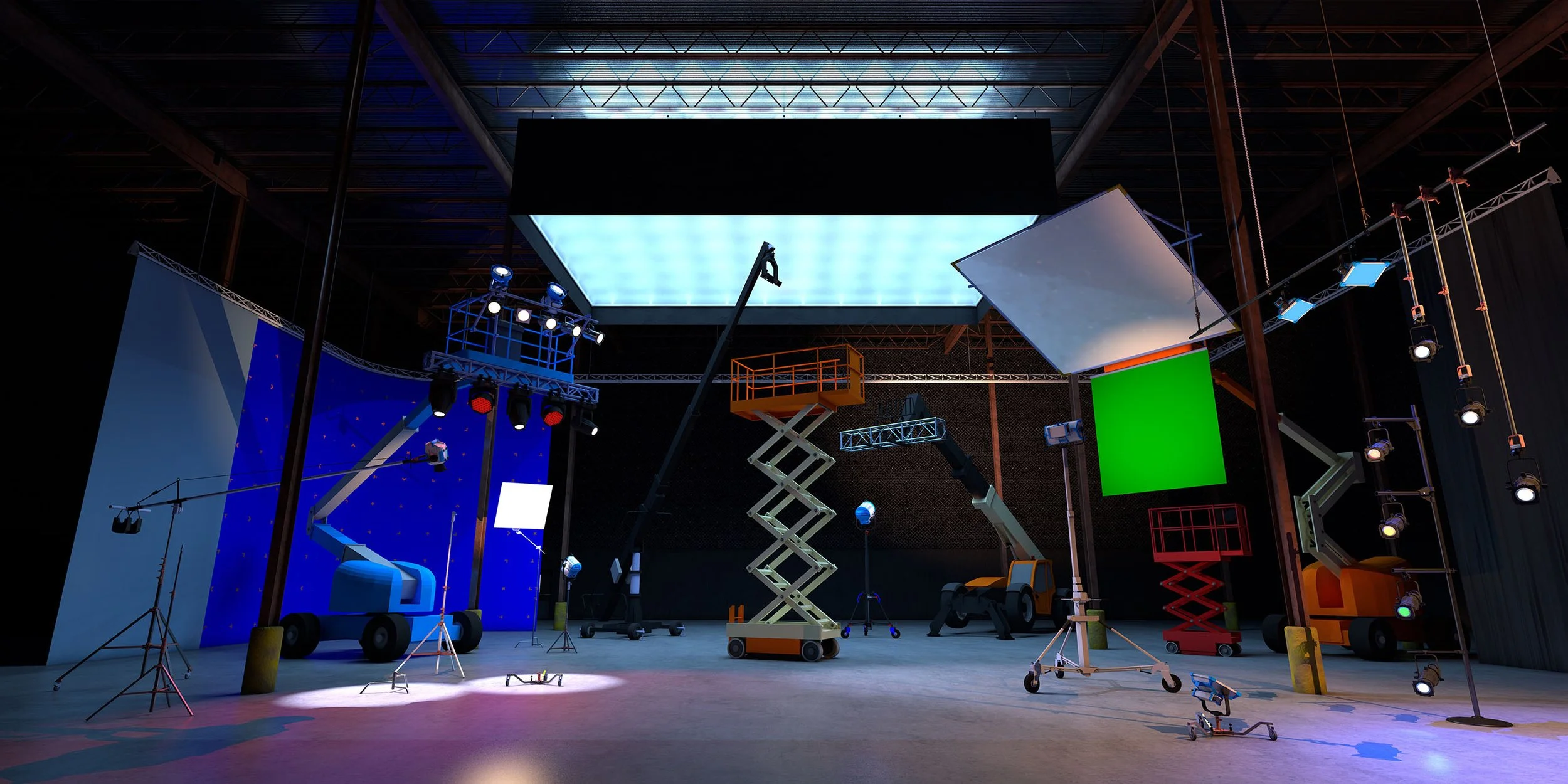

The rendering above contains almost entirely plug-in objects from IllumiViz. The plug-ins used are Scissor Lift, Boom Lift Film, Telehandler, Technocrane, Lightbox, Curtain Track, Lighting Stand, Lighting Stand Large, Grip Frame, Pipe and Base, Side Arm, Telescoping Hanger, Hangpoint Simple, iBeam, Beam Column, and Roof Joist. Not all plug-ins are currently available for sale, and some might never make it.
Featured Products
This is a selection of the main plug-ins available currently. Head to the Shop to see what else is available, including bundles which contain several plug-ins. Also be sure to check out The Workshop to see plug-ins under development.

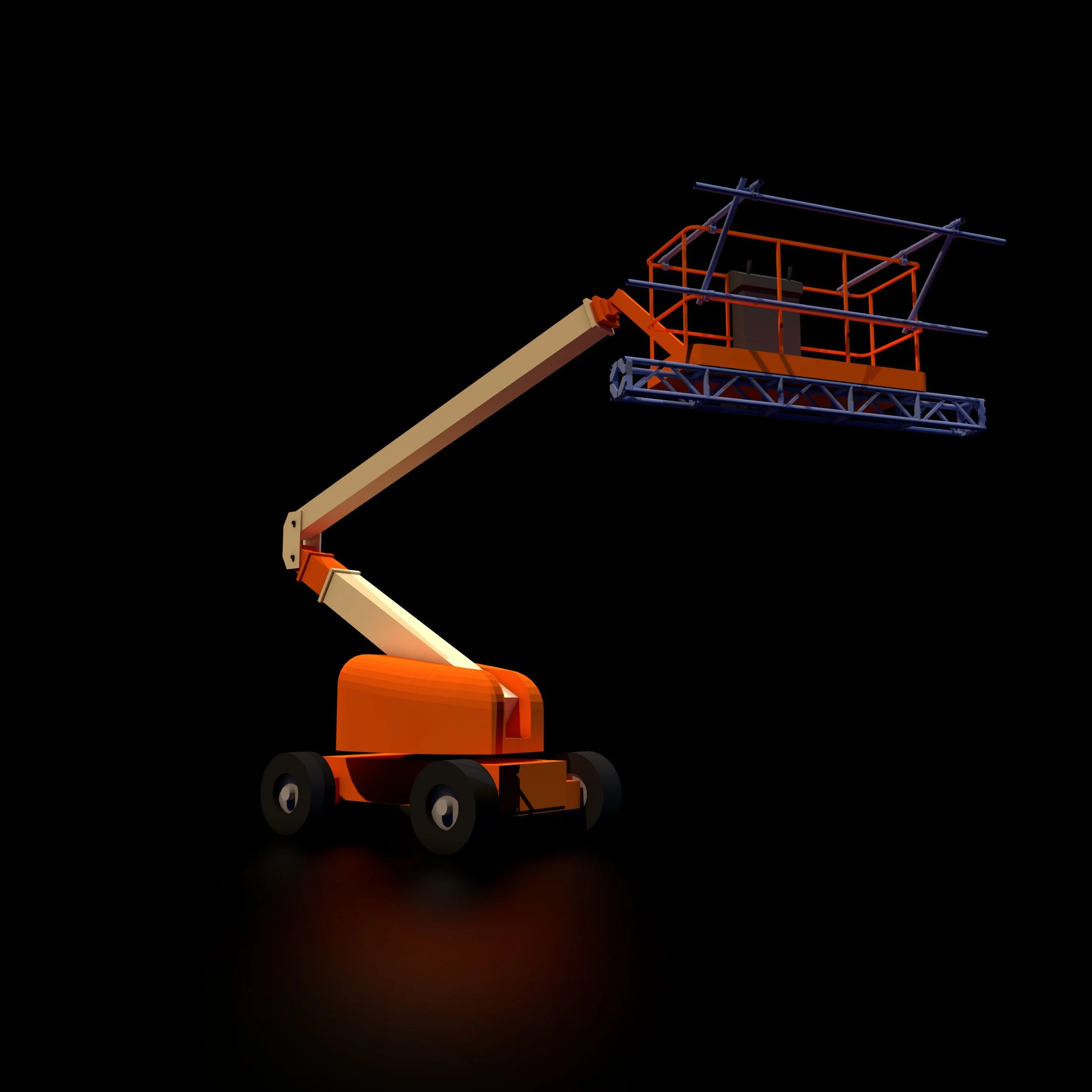

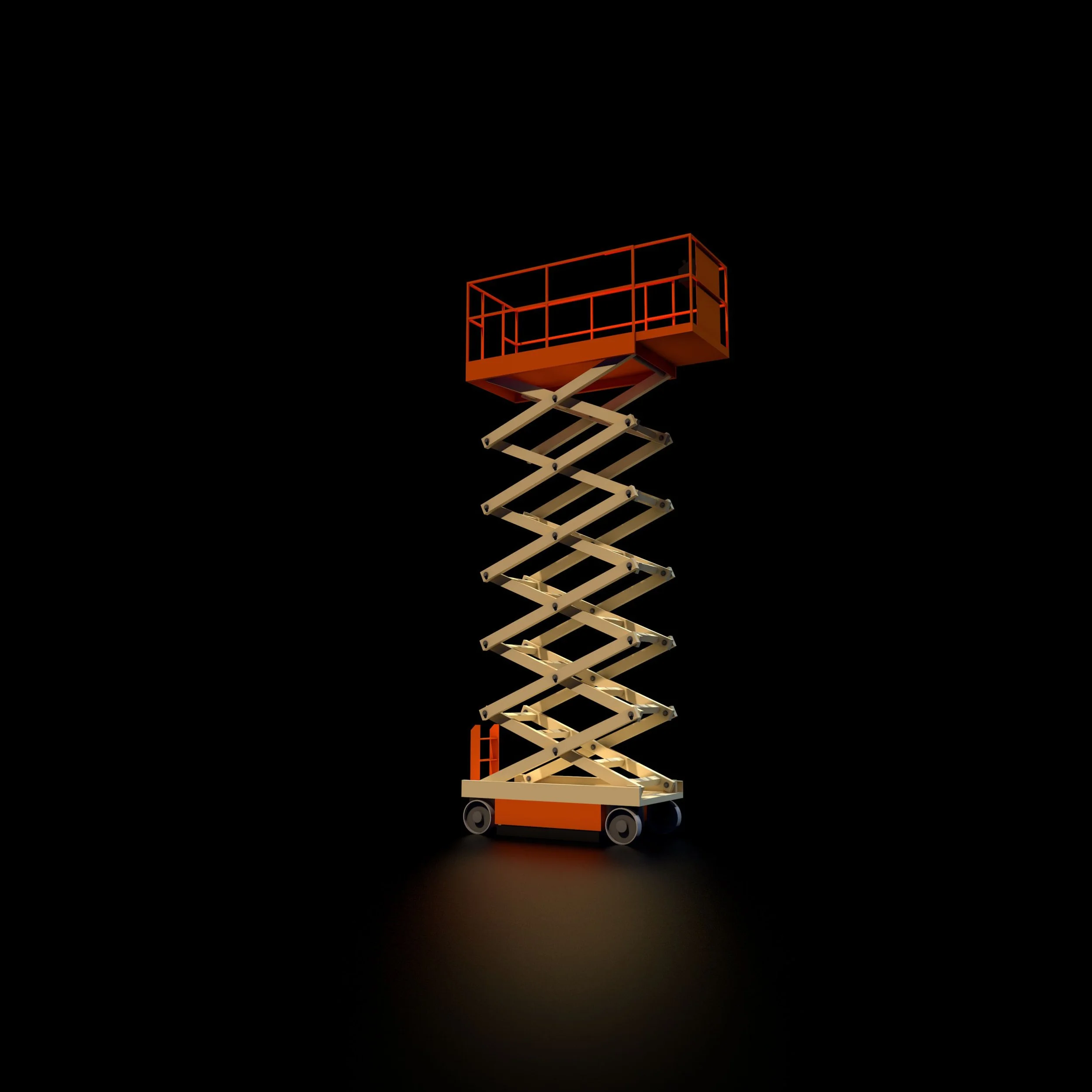

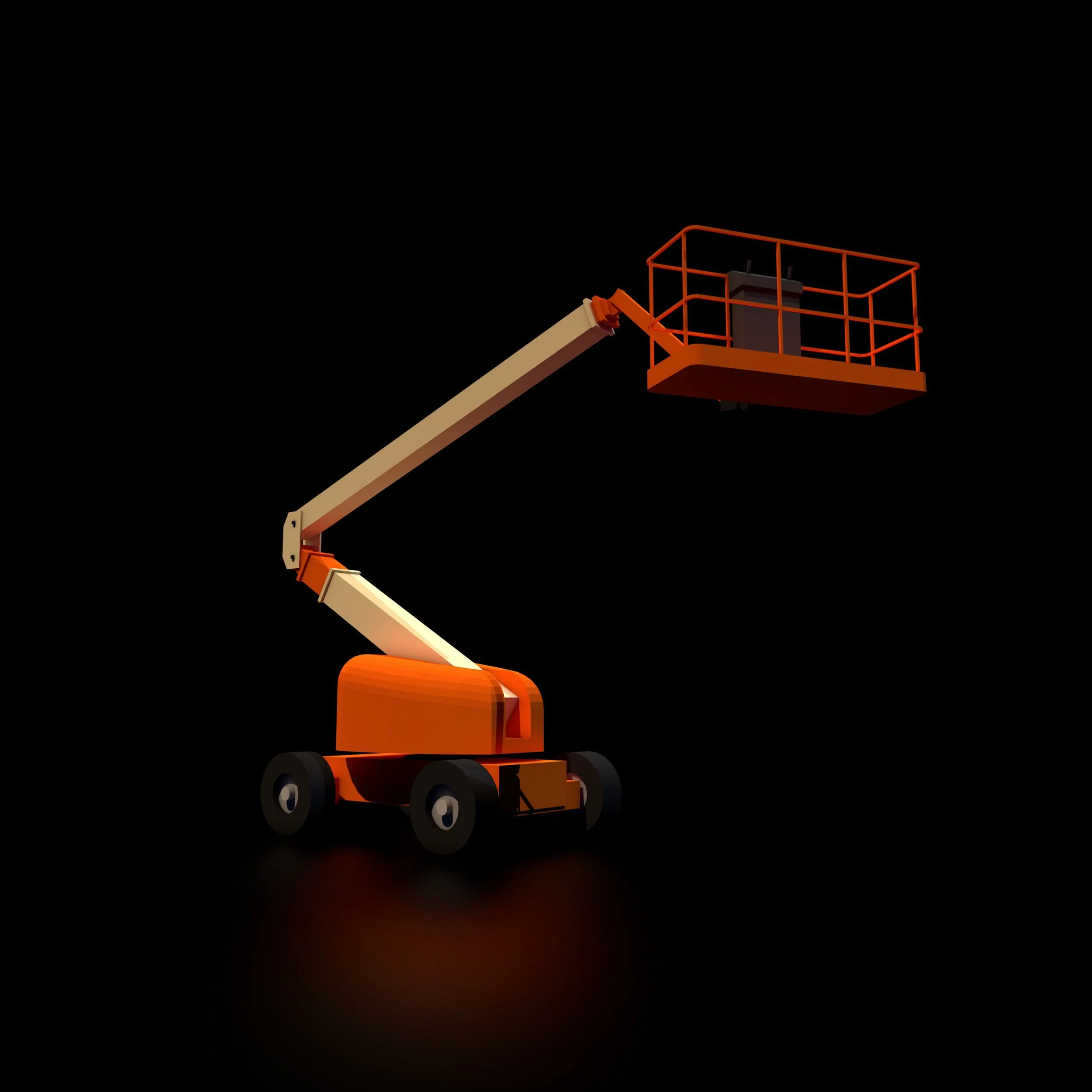

This bundle includes the Scissor Lift, Boom Lift, Boom Lift Film/TV Version, and Telehandler Plug-Ins.

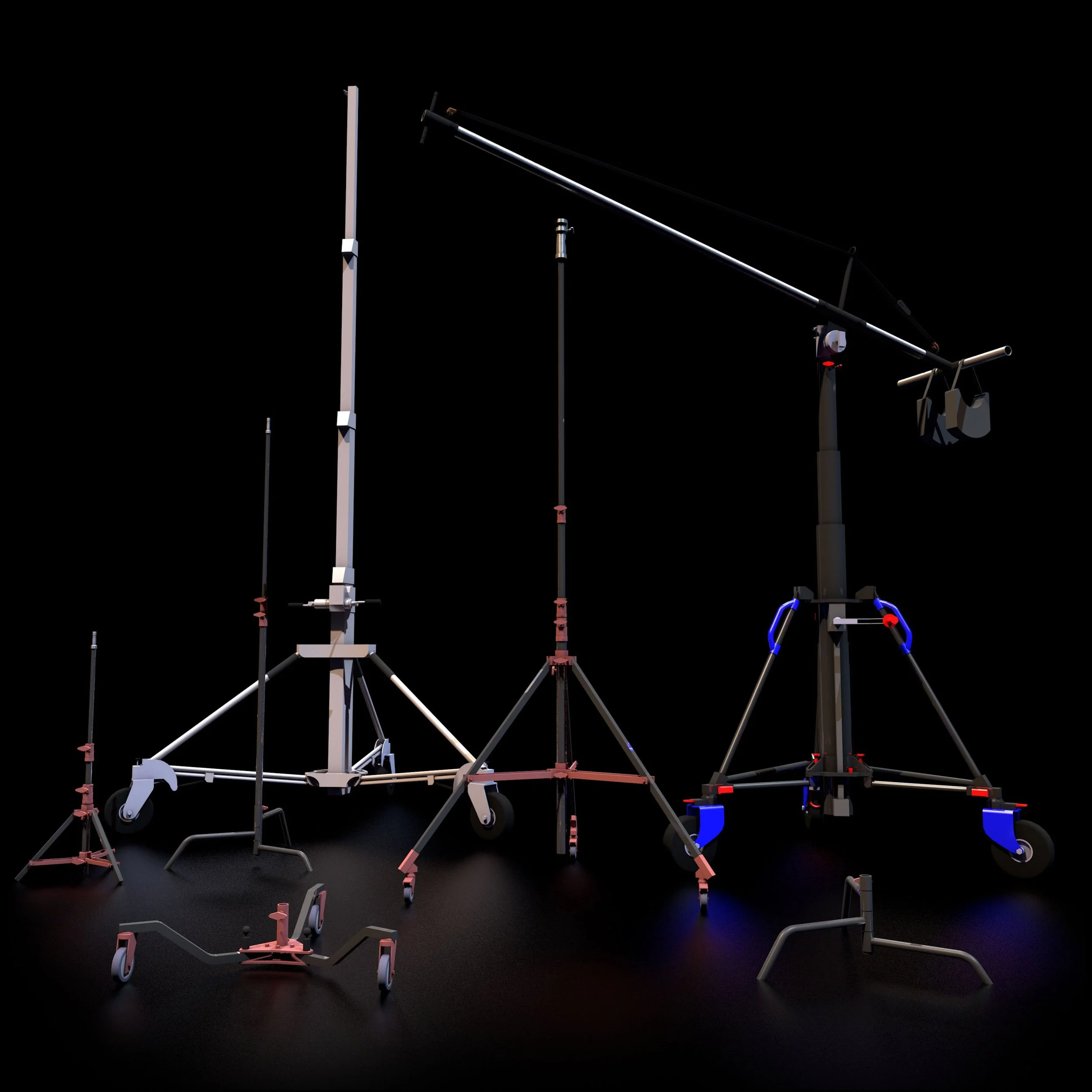

This bundle includes the Lighting Stand and Lighting Stand Large Plug-Ins.
NOTE: If you also want the Grip Frame Plug-In, DO NOT buy this bundle. Buy the Grip Bundle instead.

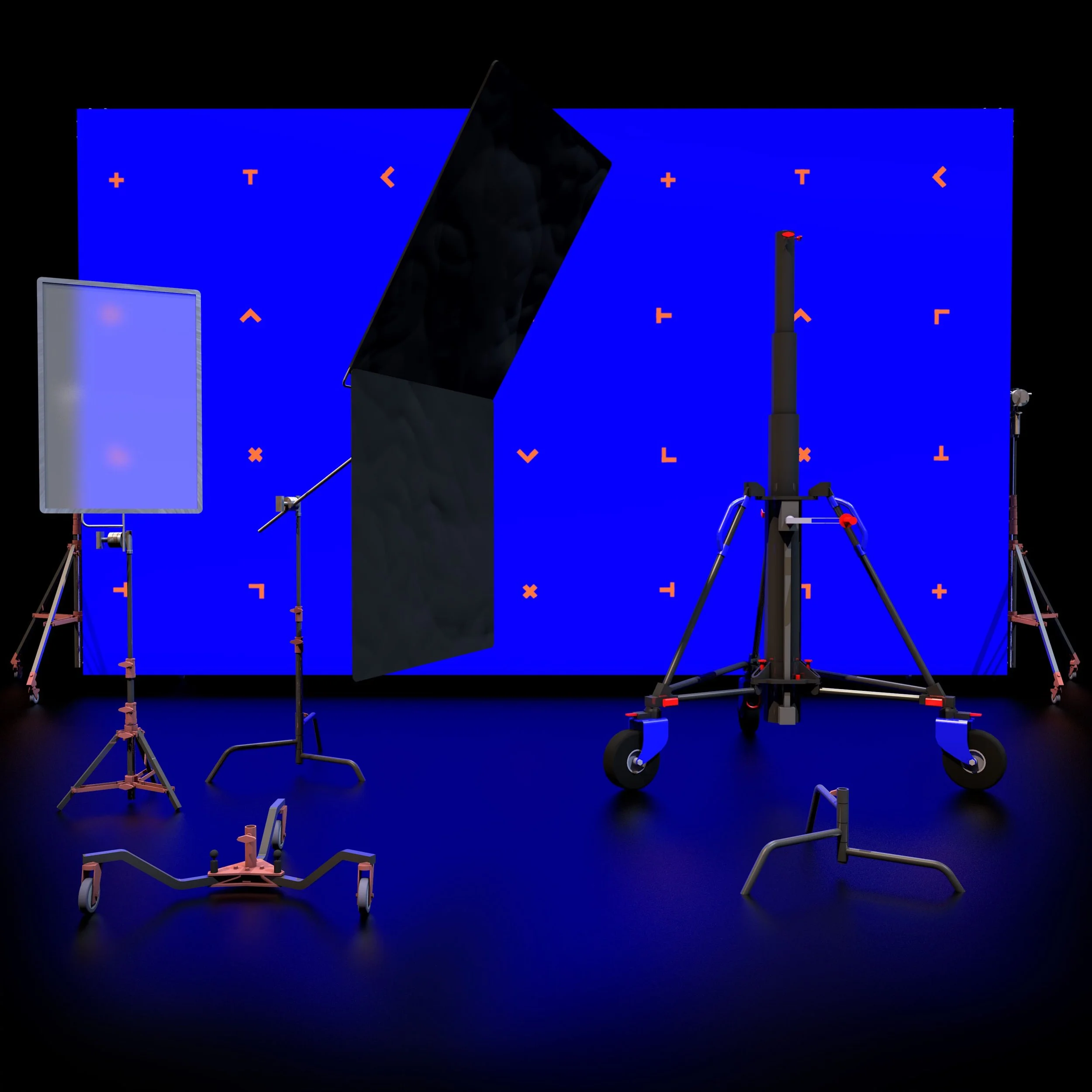

This bundle includes the Lighting Stand, Lighting Stand Large, and Grip Frame Plug-Ins.
If you just want lighting stands, and not the grip frames, then DO NOT buy this bundle. Buy the Lighting Stand Bundle instead.

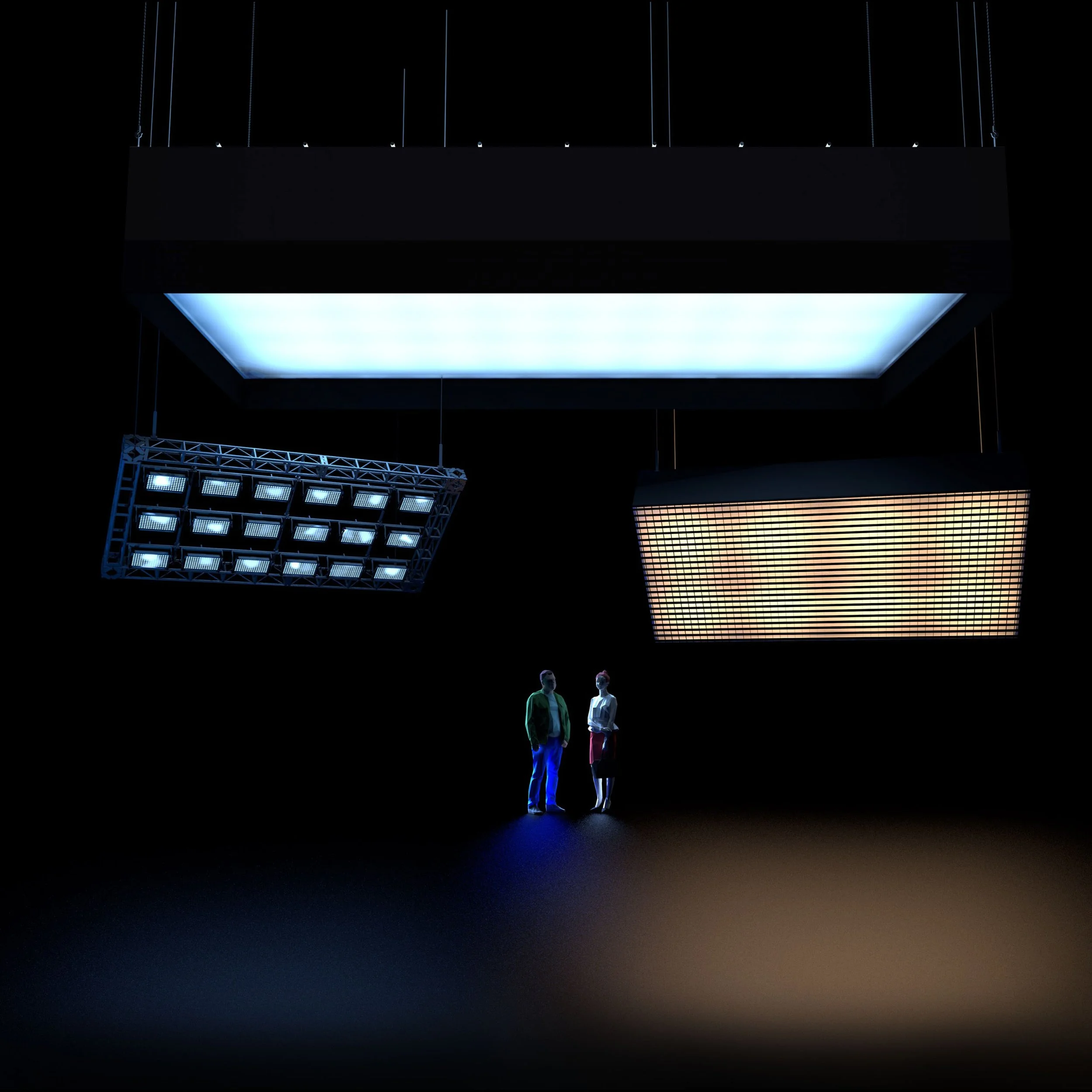

The Lightbox plug-in builds a user-definable, full hybrid lightbox/softbox for use in film and television production, although it can be adapted for use in other productions.
The lightbox can be built from numerous different types of hardware:
Square or Round Tubing
Flat Truss
Box Truss (imperial and metric options…plated only)
Full box
With drop down truss legs on cornerblocks or grapples
Cross truss options
Truss frame
Box Truss with drop down pipe border
Speed Grid (4’ and 6’, along with options for 12” and 18” trusses top and bottom)
Cross truss options
NOTE: All options are built with simple geometry and are not Vectorworks truss symbols, Braceworks objects, or rigging objects. Everything does contain chord snapping options.
There is control over pipe mounting options and support, with reference hanging points. There are also options for box surround fabric, skirt, control grid, and box top, with individual texture options for each. Basic rigging options are also provided for more detailed visuals. Boxes can also be tilted along the X or Y axis.
In addition to simple internal lighting for quick visualizations, there is an option to place Spotlight Lighting Devices onto the box, with automatic placement based on defined spacing and dimensions. This can also add position name, unit numbering, and label legends if desired.
